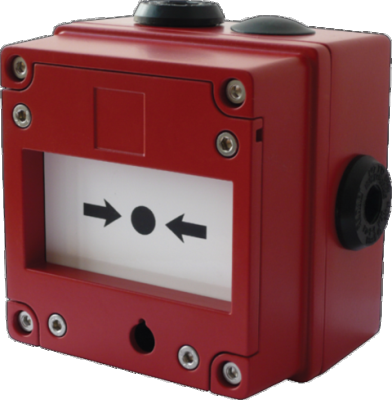

| E2S Conventional Hazardous Area Weatherproof Manual Call Point |
|
|
Key Features
- ATEX certified
- IECEx certified
- IP66
- Complies with EN54-11
 |
|
| Price : On Request |
|
| Technical Specifications |
| |
| Order Code : E2S - Explosion Proof Manual Call Point |
| Supply Voltage : |
250V AC (max) , 50V DC (max) |
| Switch : |
5A max at 250V AC , 1A max at 50V DC |
| Rating : |
- II 2 G Ex e d IIC T6 Gb Ta = -40°C ~ +55°C
- II 2 D Ex t IIIC T60°C Db
|
| Material : |
Housing - Marine Grade Copper-free , LM6 Aluminium |
| Finish : |
Housing - Phosphated and Powder Coated , Anti-corrosion Finish |
| IP Rating : |
IP66 |
| Standards and Approval : |
EN54-11 , IECEx , ATEX , EAC , InMetro , Gost-R |
| Cable Entries : |
2 x M20 Top , 1 x M20 Side |
| Operating Temperature : |
-40°C ~ +55°C |
| Weight : |
800gr. |
|
 |
| |
|
| |
| Other Products We Recommend |
|
|
| |
|
|
 |
 |
 |
|
- Design and specifications are subject to change without prior notice.
|
 |
|
|
|
|
