Terofire Saffire-126 1 Loop 126 Address 8 Zone Addressable Fire Alarm Control Panel

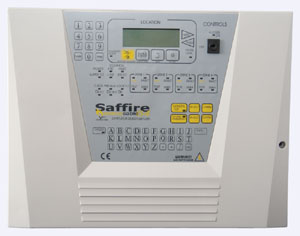

Analog Adresli Yangın Alarm Santralı


Adressable Control Panels



  • 1 loop 126 Adress
  • EN54 2 & 4
  • 2048 Log Memory ( Alarm & Fault )
  • Zone & Device Disable / Enable
  • No required computer
  • Can be connected Loop Powered Souner
  • RS-232 Desktop Printer (Optional)
  • Flame Retardant ABS plastic Case
  • 500mA Loop Current
  • 4 x 20 LCD Display
  • 8 (Saffire 126) zone
  • User Friendly Control
  • Can be connected repeater
  • Keyswitch
  • Onboard Keyboard

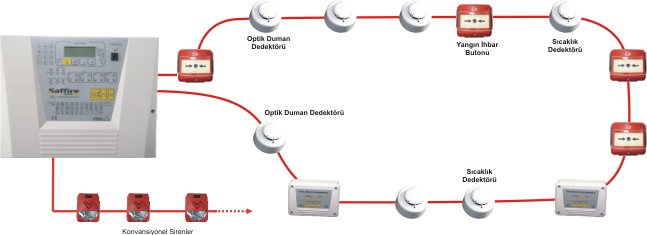

Bölgeler ve Adresler
Loop & Adres Saffire 126
1. Adres 1-16 1. Zone
1. Adres 17-32 2. Zone
1. Adres 33-48 3. Zone
1. Adres 49-64 4. Zone
1. Adres 65-80 5. Zone
1. Adres 81-96 6. Zone
1. Adres 97-112 7. Zone
1. Adres 113-126 8. Zone


Physical Specification
Dimension : 355 x 275 x 100 mm
Cable Gland : 12 X 19mm Diameter
Bottem Void : 2 X 19mm Diameter
Elektriksel Özellikler
Supply Voltage : 230V AC +/- 10% @ 50/60 Hz
Battery Voltage : 24V DC (2 X 12V SLA Battery)
System Voltage : 24V DC Nominal (18 – 32 V)
Sistem Gerilimi Dalgalanması : 2V Pk-Pk Max
Battery Size : 7Ah ile Maksimum 24 saat
Loop Voltage : 24V DC Nominal (+9 volt data)
Siren Output : Sadece Loop Beslemeli Siren
Aux Fault Output : 24V Relay (Normally Open)
Aux Fire Output : 24V Relay
Loop Number: 1 Loop
Zone Number : 8 Zone (Saffire 64 için 4)
Loop Capacity : 126 Aygıt (Saffire 64 için 64)
Zone Capacity : Her zone 16 Aygıt
Maximum Loop Resistance : 25 Ohm
Maximum Loop Capacitance: 0.3μF
İzin Verilen Maksimum Gerilim Dalgalanması : 50mV
Remote Control : Normalde Açık Kontaklar Vasıtasıyla
Battery Charge Voltage : 28.3V @ 22-24oC
Loop Short Circuit Protection : 750mA
Battery Discharge Protection : 20V
Total Battery Charge Output : 1.1A
