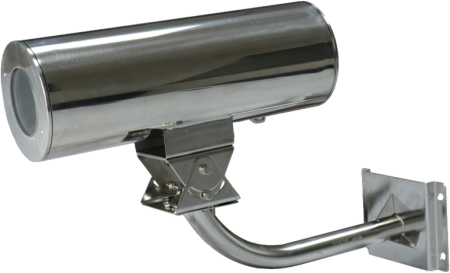

LR-1730AX ATEX Certified Explosion Proof Security Camera Housing


  • IP68, NEMA-6P enclosure rating
  • Operating temperature range from -40 °C to 60 °C (-49 °F to 140 °F)
  • Ex d IIC T6 Gb explosion-proof marking
  • AISI 304/316L stainless steel construction (available)
  • Included wiper and sunshield

Price : On Request

Technical Specification

Model No , Description :

(LR-1730AX) ATEX Certified Camera Housing (AISI 304-AISI 316L stainless steel options)

Atmospheric Pressure :
80 kPa to 106 kPa
Operating Ambient Temperature :
-40 °C to 60 °C (-49 °F to 140 °F)
Relative Humidity :
5 % to 95 % noncondensing
Protection Rating :
Ex d IIC T6 Gb explosion-proof marking , IP68, NEMA-6P enclosure rating
Input Power : 24 V AC , 220 V AC, 50 Hz (optional)
Dimensions (W × H × L) : 160 mm × 160 mm × 405 mm (6.3 in × 6.3 in × 15.9 in)
Internal Usable Size (Ø × L) : 105 mm × 330 mm (4.1 in × 13.0 in)
Window Viewing Area (Ø) :
73 mm (2.9 in)
Weight : 8 kg (17.6 lb)
Dimensions :
AISI 304 stainless steel (LR-1730AX) , AISI 316L stainless steel (LR-1730AX-S)
Package Dimensions : 11,5cm x 10,5cm x 9cm
Heater Control :
On at 1 °C ± 3 °C (34 °F ± 5 °F) (optional)
