Video Distribution Boxes


- Video Distributor

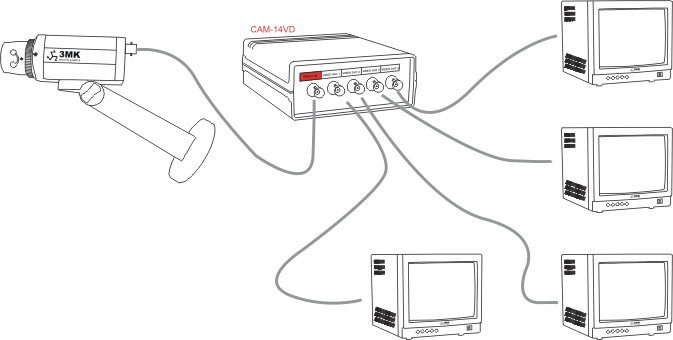

3MK-14VD
1 Input 4 Output Video Distributor
  video distribütör , video dağıtıcı


video distribütör , video dağıtıcı
  • 1 BNC Video Inputs
  • 4 BNC Video Outputs
  • DC Power Supply Included
  • CCTV Camera or DVR can be used as input

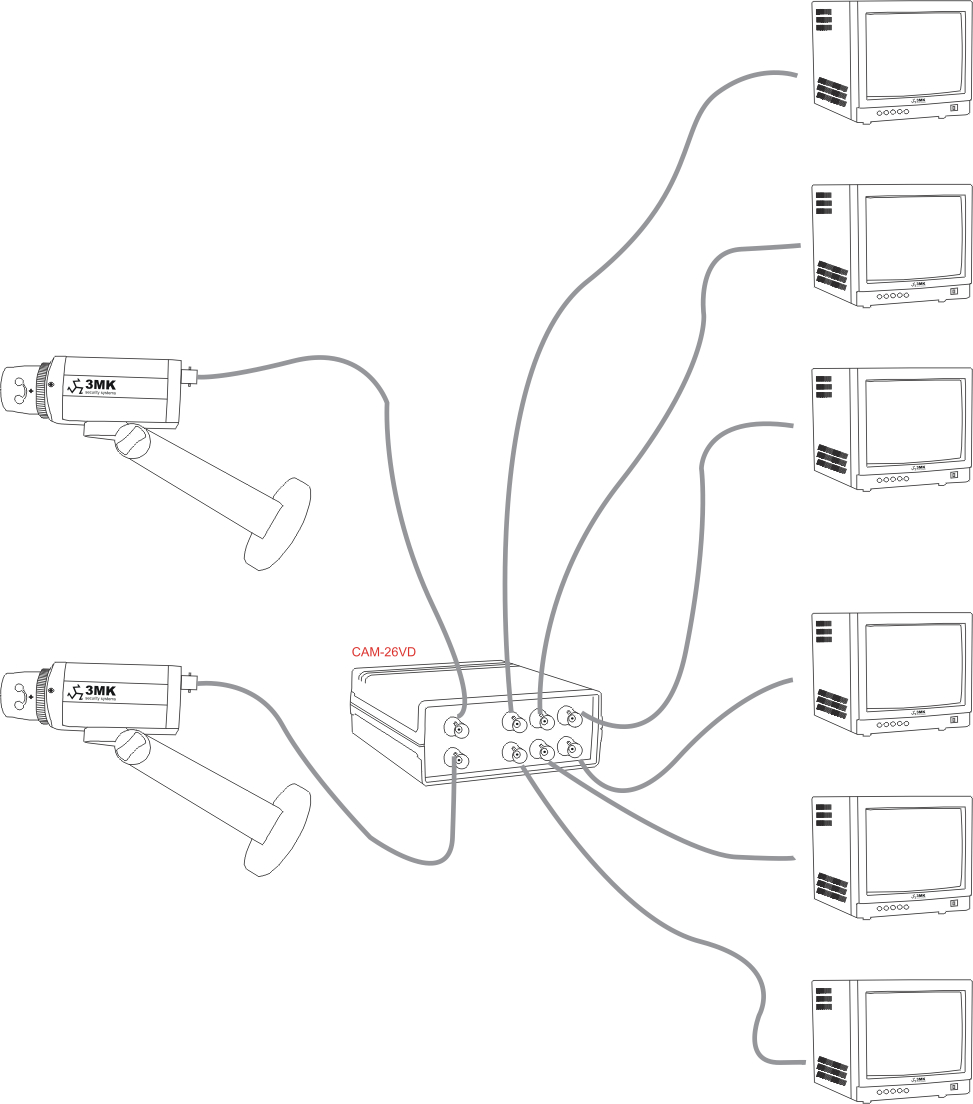

3MK-26VD
2 Inputs 6 Outputs Video Distributor



video distribütör , video dağıtıcı
  • 2 BNC Video Inputs
  • 6 BNC Video Outputs
  • DC Power Supply Included
  • CCTV Camera or DVR can be used as input



3MK-824
8 Inputs 24 Outputs Video Distributor

video distribütör , video dağıtıcı
  • Supply Voltage : AC220V / 50Hz
  • Video Input Impedance 75 Ohm , Unbalance
  • Video Bandwith :12MHz (-3dB)
  • Video Input / Output Interface : BNC
  • Frequence Responce:10Hz-7,5MHz 0,5dB
  • Bandwith (-3dB) : 1 HZ to 15 MHZ
  • Gain : Identical
  • Maximum Output : 3.0Vp-p
  • Fuse : 230 VAC 3.0V p-p
  • Fuse : 230V AC 3.0 Low Speed
  • Working Temperature : -10 > 55 C
  • Humidity : < 90 RH
  • Case : Electrolysis board case
video distribütör , video dağıtıcı

3MK-1648
16 Inputs 48 Outputs Video Distributors

video distribütör , video dağıtıcı
  • Supply Voltage : AC220V / 50Hz
  • Video Input Impedance : 75 Ohm , Unbalance
  • Video Bandwith :12MHz (-3dB)
  • Video Input / Output Interface : BNC
  • Frequence Responce :10Hz-7,5MHz 0,5dB
  • Bandwith (-3dB) : 1 HZ to 15 MHZ
  • Gain : Identical
  • Working Temperature : 3.0Vp-p
  • Fuse : 230 VAC 3.0V p-p
  • Fuse : 230V AC 3.0 Low Speed
  • Humidity : < 90 RH
  • Case : Electrolysis board case
video distribütör , video dağıtıcı
